Cube Filters

Polyester cube filters are ideal for use in multi-stage spray booths. Constructed with high performance environmentally safe, polyester media. Cube filters are tear resistant and won’t rupture before or after installation. The cube configuration in each filter results in even airflow, full inflation and minimal resistance. Deep pockets allow for optimal paint holding capacity and protracted service life. Typical applications include industrial and automotive spray booths, powder coating operations, HVAC, and a variety of additional industrial uses.

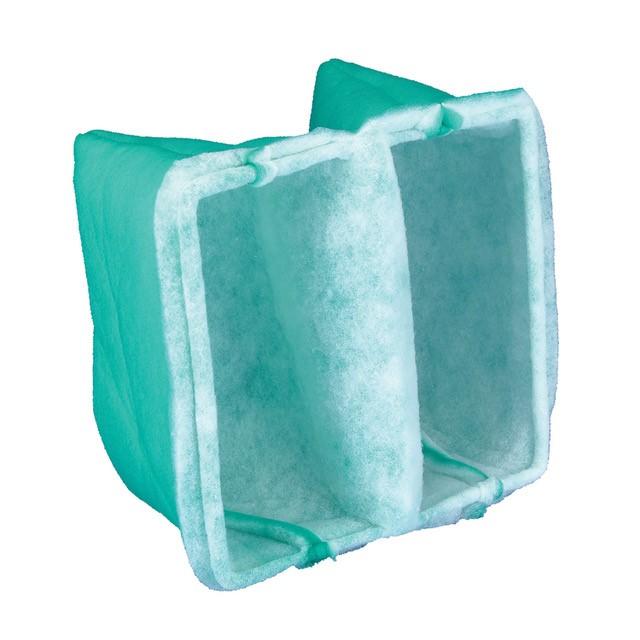

CC50-2

Series CC50

The Series CC50 extended surface cube filter is FG-F’s economical solution for paint overspray collection applications. Made from 100% polyester, the dual density, single ply media is heat-sealed to a heavy gauge metal support frame and forms a self seal when installed.

  • Low initial resistance with high paint holding capacity.
  • 98.9% Efficient.
  • Easy to handle self-supporting design.
  • Headered version also available.
CC50-2

Series CC99

The Series CC99 extended surface cube filter is FG-F’s high capacity and economical solution for paint overspray collection applications. Made from 100% polyester, the media consists of a 1″ coarse layer to facilitate overspray collection and retention, combined with a second layer designed to trap finer paint particles. It is heat-sealed to a heavy gauge metal support frame and forms a seal when installed.

  • High paint holding capacity.
  • 99.6% Efficient.
  • Easy to handle self-supporting design
  • Headered version also available.

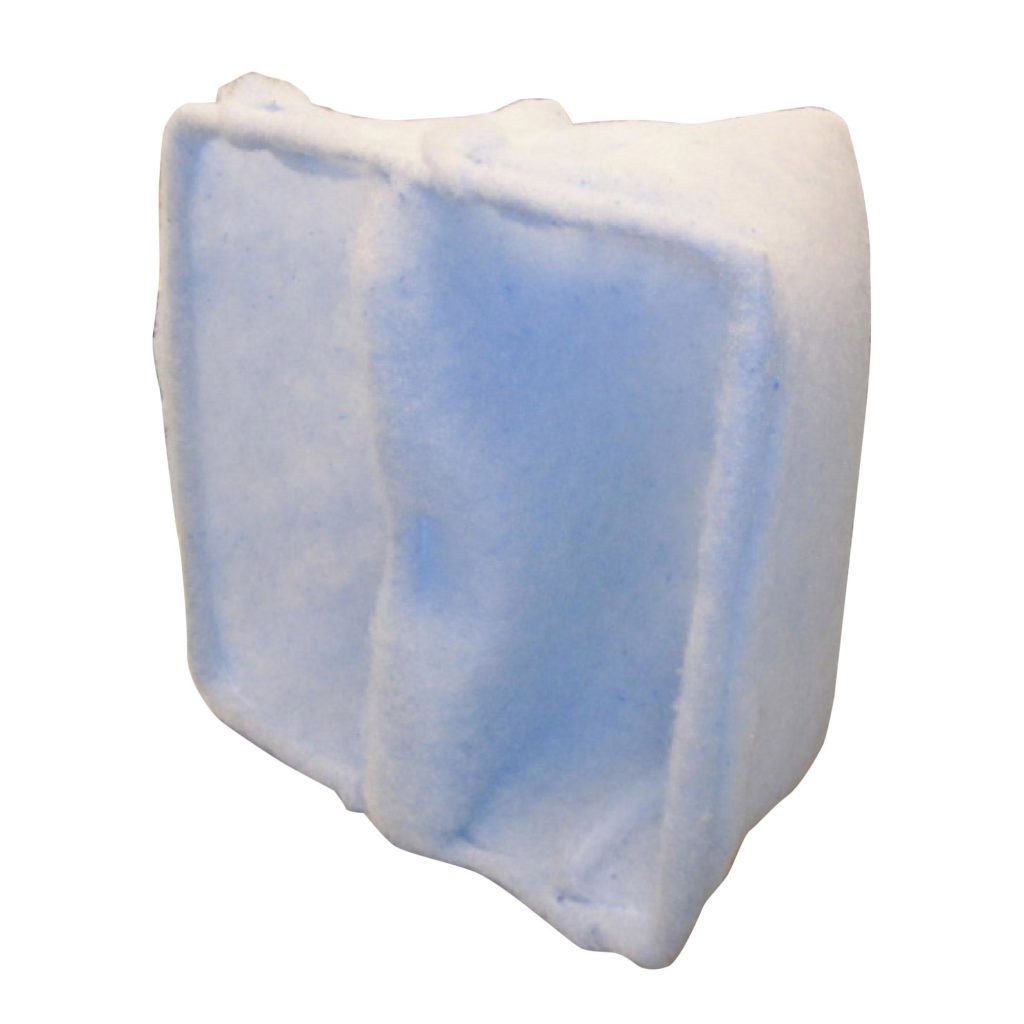

e75

Series E75

The Series E75 extended surface pocket filter is FG-F’s high efficiency overspray collection products. Constructed of 1″ synthetic overspray media, this product provides maximum service life while maintaining optimal removal efficiency (over 99%) and air flow. Made from recycled polyester fibers, the E75 is sewn and heat-sealed to a heavy gauge metal support frame. This sturdy combination results in a filter with low initial resistance and high holding capacity.

  • Excellent holding capacity and removal efficiency (99%+).
  • Low initial static pressure (0.06″-0.12″ w.c).
  • Keeps filter plenum and fans clean.
  • Made in the U.S.A. from recycled materials.
  • Low unit cost.

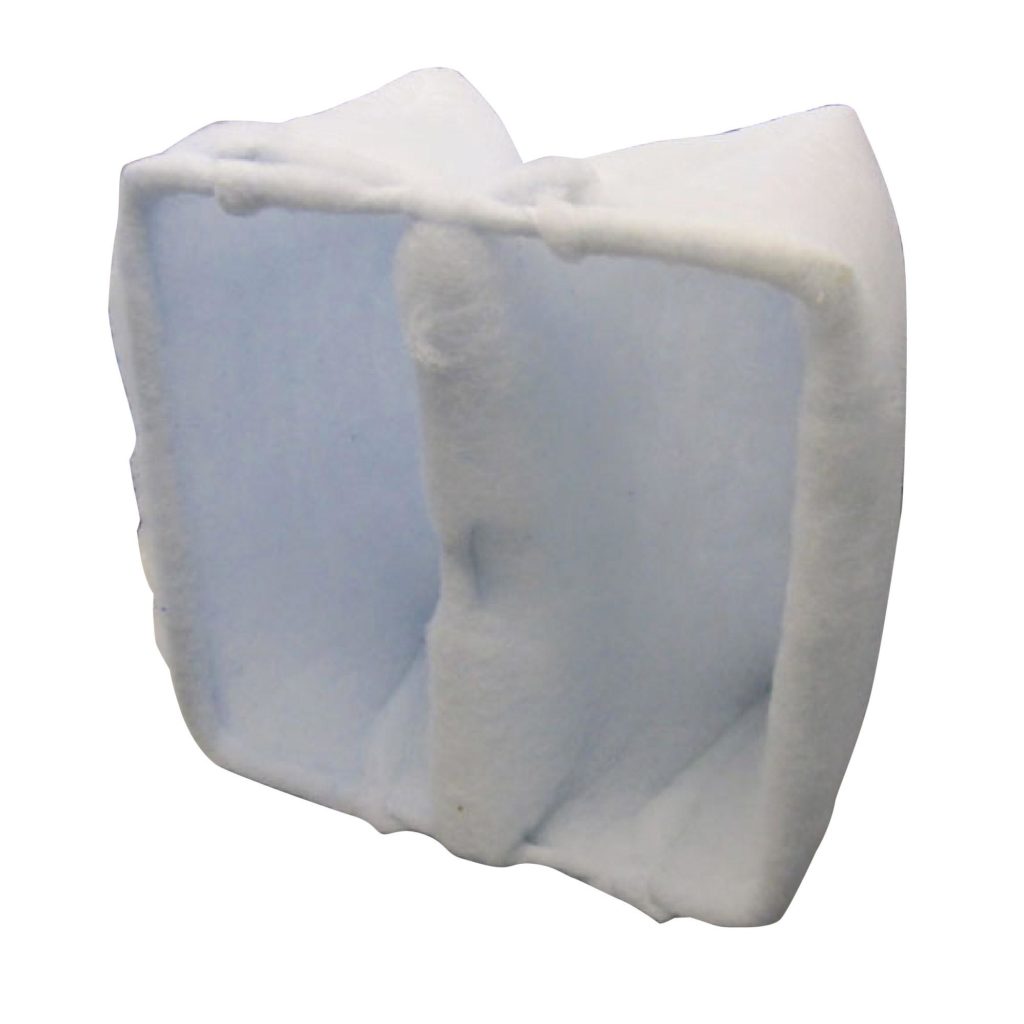

E12H

Series E12H

The Series E12H extended surface pocket has the benefits of the standard E12 cuber while increasing the average removal efficienncy with the introduction of a final downstream layer of high efficiency polypropylene skin. The substantial holding capacity and construction using recycled fibers makes the E12H one of the most economical, high-efficiency overspray collectors in the marketplace.

  • High particle removal efficiency (99.79%).
  • Excellent holding capacity (8 lbs. per filter).
  • Low initial static pressure (0.06″ w.c.).
  • Made in the U.S.A. from recycled materials.

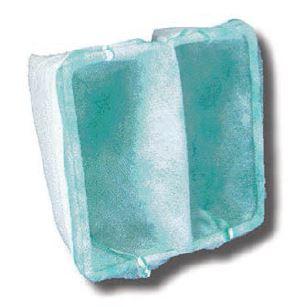

45% Media Layer Bag Filter

Series CC100

The Series CC100 extended surface cube filter is FG-F’s extra high capacity solution for paint overspray collection applications. Made from 100% polyester, the media consists of a 1″ coarse dual layer to facilitate overspray collection and retention, combined with a second layer designed to trap high volumes of finer paint particles. It is heat-sealed to a heavy gauge metal support frame and forms a seal when installed.

  • Best suited for “dry type” paint overspray collection.
  • Extra high paint holding capacity.
  • 99.8% Efficient.
  • Headered version also available.

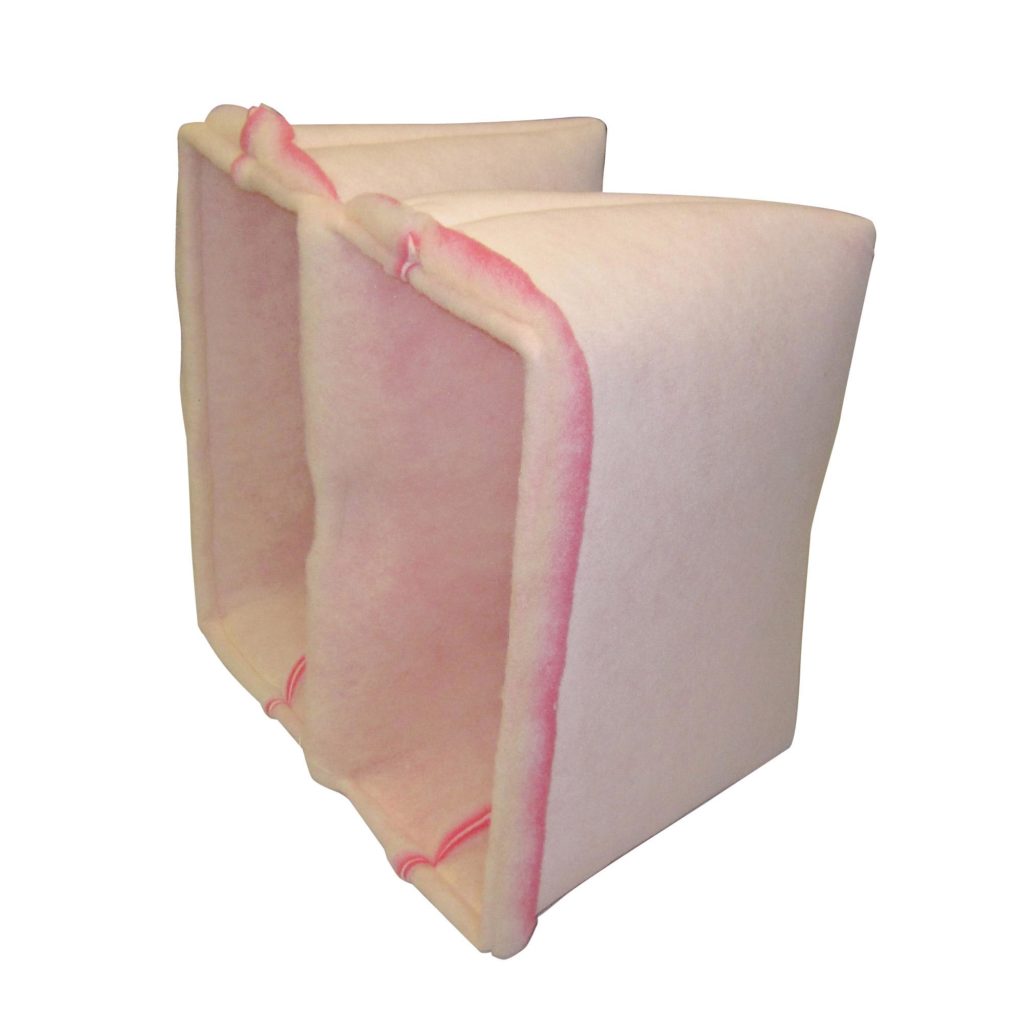

CC 400-500 Cube

Series CC400

The Series CC400 extended surface 2 pocket cube filter is FG-F’s high capacity/high efficiency solution for paint overspray collection applications. Constructed of two heavy duty layers of environmentally protective 100% polyester media, the two pocket filter is precision sewn to a heavy gauge metal support frame. This sturdy combination results in a filter that has low initial resistance, high paint removal efficiency, and extremely high paint holding capacity.

  • Quick-dry, water-based, or small particle paint overspray.
  • Ideal for two stage filter systems.
  • Any high volume finishing systems including bake coatings and plural component finishes.
  • Over 70% efficient at 1.0µ.
  • Low initial resistance (0.07″ w.c. at 150 FPM).
  • 99.85% Average Arrestance Efficiency.
45% Media Layer Bag Filter

Series CCPC

The Series CCPC extended surface cube filter is FG-F’s high efficiency overspray collection powder paint product applications. Made from 100% polyester, the media consists of a 1″ coarse layer to facilitate overspray collection and retention, combined with a second layer designed to trap finer paint particles. It is heat-sealed to a heavy gauge metal support frame and forms a seal when installed.

  • Extremely high paint holding capacity for powder paint.
  • Easy to handle self-supporting design.
  • Headered version also available.
  • 99%+ efficient on powder paint overspray collection.
Expanded Paper Cube

Expanded Paper

The FG-F “Spray-Cube” extended surface cubes are the latest in FG-F’s storied line of high efficiency spray booth filters. Each style of cube is designed to provide high holding capacity and an economical solution for the widest range of finishing applications. All cube filters are constructed of multiple layers of AFT’s proprietary paper paint arrestor media. Each cube features varying levels of high efficiency synthetic backings designed to provide durable, long-lasting paint arrestor performance.

Series SE, Medium Efficiency – High Holding Capacity

  • Lowest initial pressure drop (0.02″ w.c.).
  • Average removal efficiency of 98.8%.
  • Widely used in high volume, medium efficiency applications.

Series HE, High Efficiency – High Holding Capacity

  • Low pressure drop compared to other high efficiency overspray cubes (0.05″ w.c.).
  • Average removal efficiency of 99.1%.
  • Used in high volume applications that require higher than normal removal efficiency.

Series UE, Ultra High Efficiency – High Holding Capacity

  • Extremely high removal efficiency over 99.5%.
  • Low pressure drop for high efficiency (0.05″ w.c.).
  • For high volume systems that utilize paints and coatings that are difficult to filter with standard filter products.

Supraloft® Cube/Pocket Filters

The Supraloft® Cube/Pocket Filters are one of the best and most economical choices for extended-surface filtration. Each filter utilizes a technologically advanced media that incorporates a multi-zone, gradient-density fiber structure that results in exceptionally low airflow resistance, at high efficiency levels – reducing both energy and operating costs.

When used on today’s compliance coatings such as waterborne and high solids, the Supraloft® Cube/Pocket Polyester bags with their excellent efficiencies and versatility are the perfect overspray collector and especially effective to back up rolls, pads, and paint collector media.

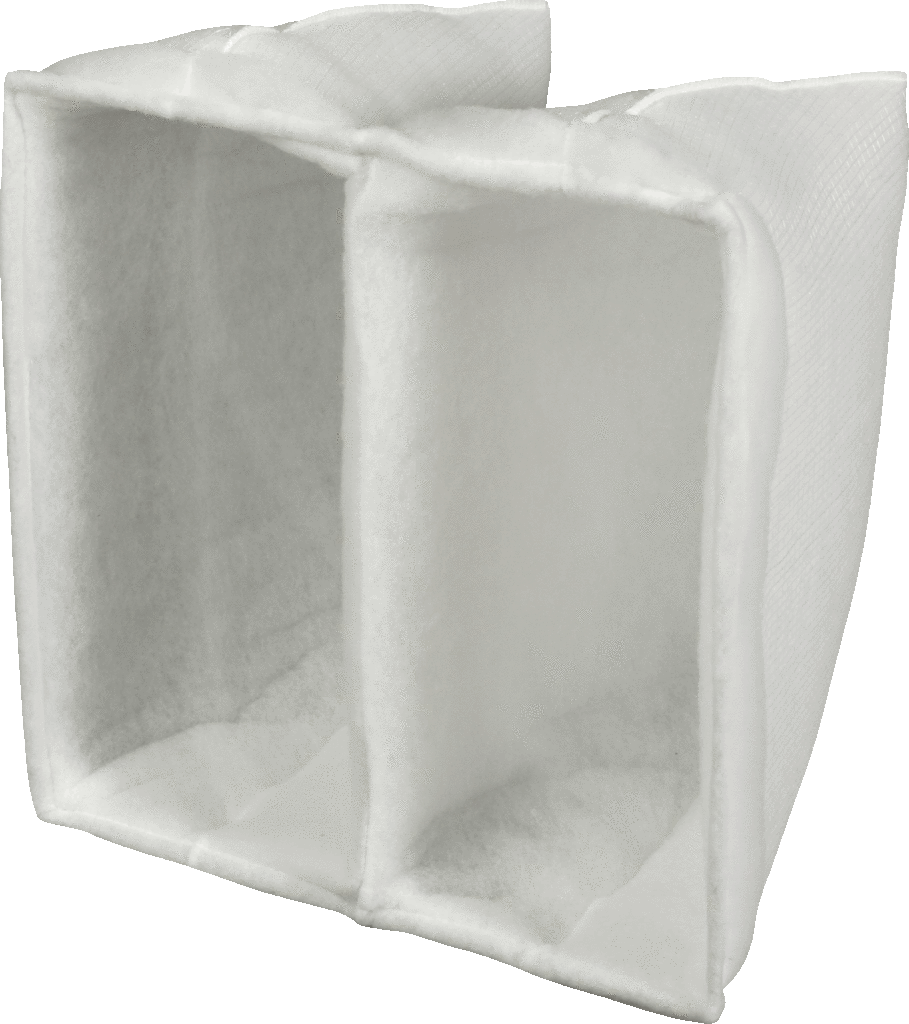

SL-DP2 Self-Sealing Cube/Pocket Filter

Dry, self-sealing, scrimmed back cube with all synthetic fibers. With the scrimmed back it makes a very tough and durable cube for primarily paint overspray applications but could be used in air filtration applications where a scrim is needed. This is available in various constructions and is the product of choice in Blowtherm spray booth applications.

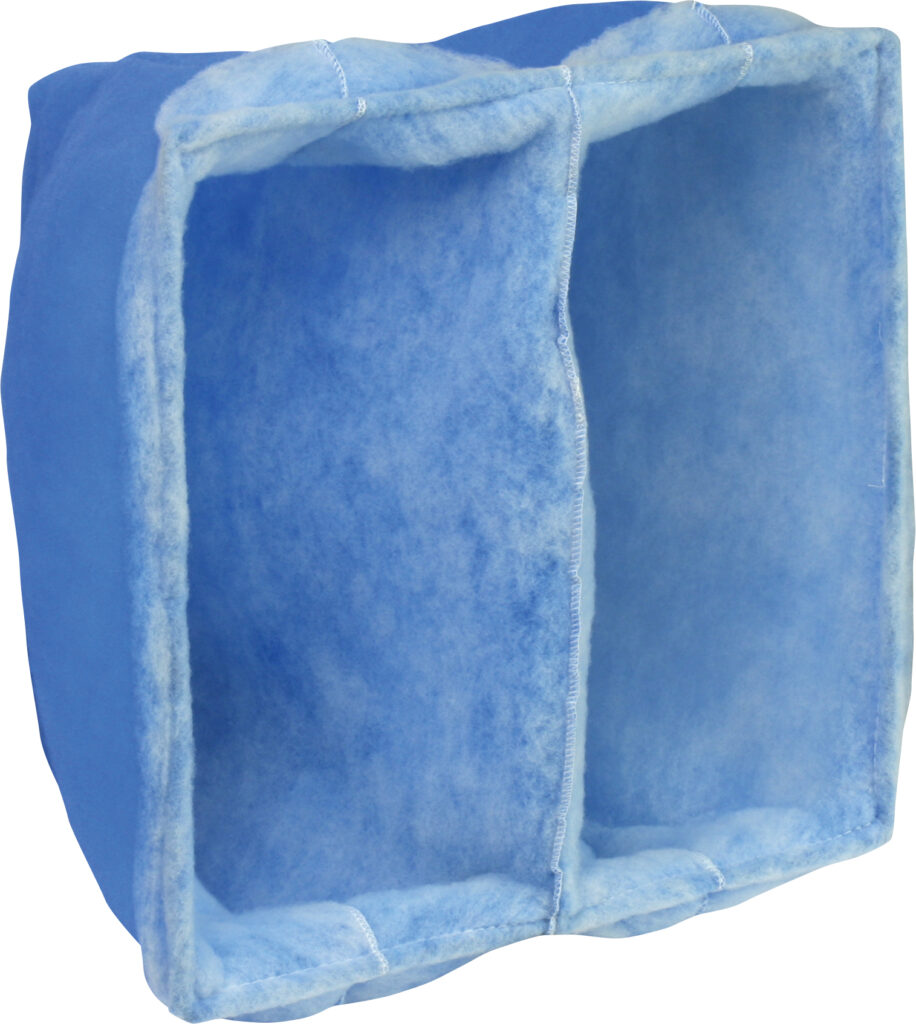

SL-100WBT Self-Sealing Cube/Pocket Filter
Manufactured from synthetic fibers of two denier sizes and two zones of filtration and is self-sealing in the frame. The front layer acts as impingement with the back layer containing a non-migrating tackifier to prevent unloading of dust particles that have been removed from the airstream. The white is the upstream and the blue is the downstream sides for airflow. Recommended for use in applications where medium to heavy dust loads occur and has an extremely high dust holding capacity. MERV 7 media. Antimicrobial.

SL-100PSG Self-Sealing Cube/Pocket Filter
An all synthetic, dry, pocket filter with two zone construction. The upstream side is lofted to give depth loading, and the downstream side is needled to yield high arrestance efficiency, particularly on paint overspray with high holding capacity and service life. Made with prime grade recycled fibers.

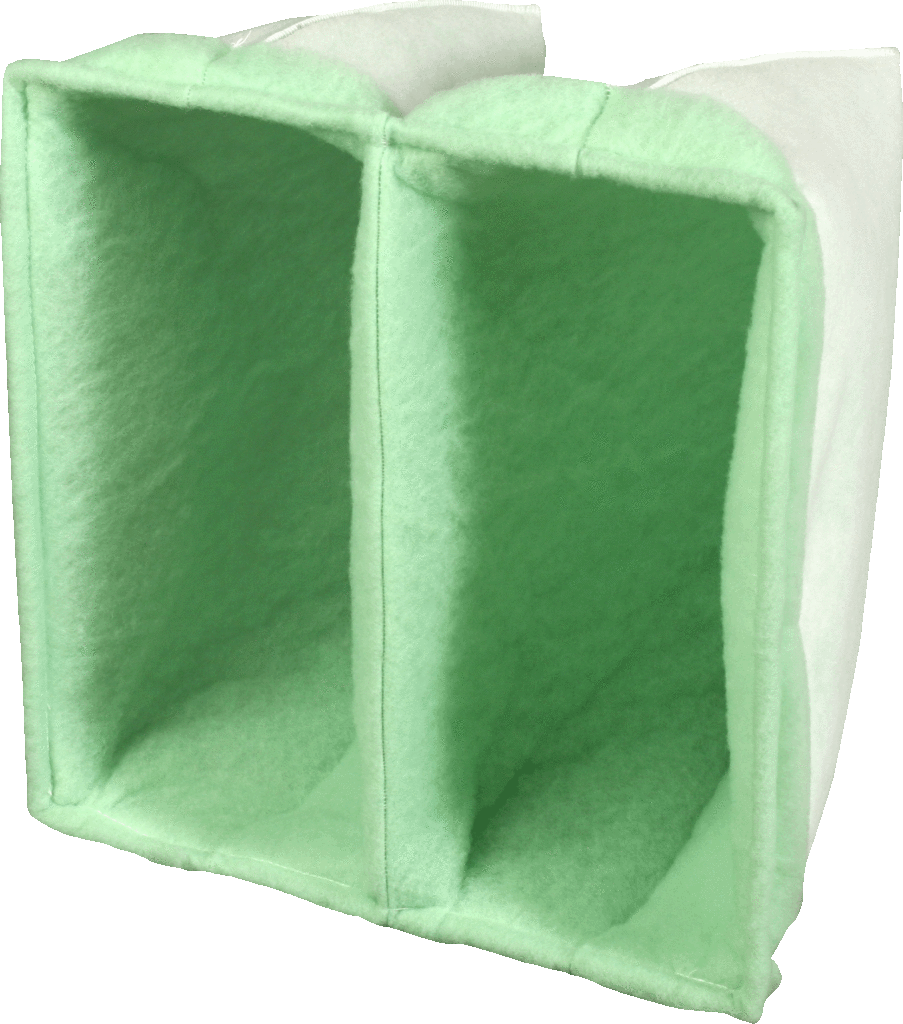

SL-100PSB Self-Sealing Cube/Pocket Filter

A two layer, dry, green and white, synthetic media bag filter. The upstream, or faceply, is made with larger fibers and highly lofted for greater depth loading and long service life. The green downstream side is made of fine fibers and needled for very high arrestance efficiencies on paint overspray. This is a premium paint overspray filter that is effective against a wide variety of coatings. Made with prime grade recycled fibers.

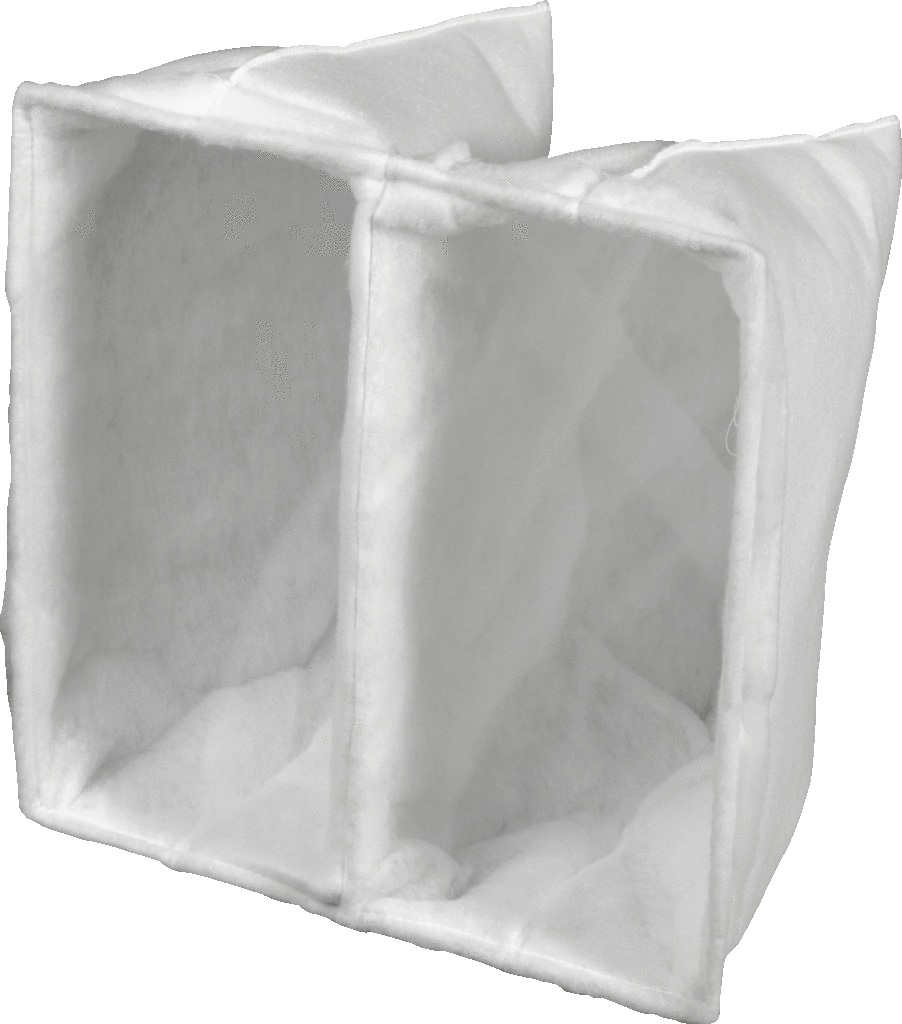

SL-DP1 Self-Sealing Cube/Pocket Filter
The filter is a dry, self-sealing cube with two layers and two zones of filtration. Designed for very high holding capacity and efficiency primarily for paint overspray applications. This is a premium paint overspray collector for a wide range of secondary filtration applications.

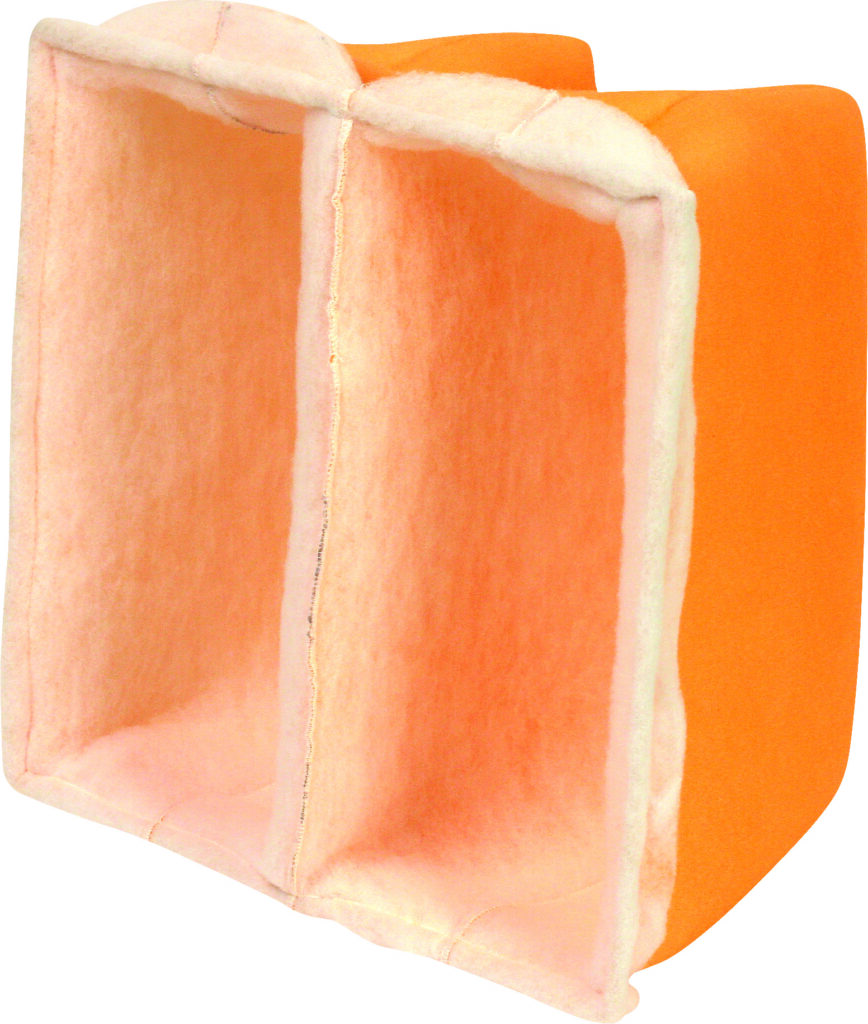

SL-100ONT SURE-STOP AM™ Self-Sealing Cube/Pocket Filter
Made from synthetic fibers of two denier sizes with a more open and dry face ply and a densified back ply with a heavily tackified coating for three zones of filtration. This is a premium HVAC cube filter for heavy loading and high efficiency. Extremely effective as a standalone filter in spray-to-waste powder booths and a wide range of HVAC applications. Includes antimicrobial fibers and meets MERV 10 media. Antimicrobial.

SL-45B Self-Sealing Cube/Pocket Filter
Meets Aerospace/NESHAP requirements for existing paint booths when using SL-100PSG as the primary filter. It has four zones for filtration including an internally tackified layer to hold dust throughout the media and is self-sealing in the frame. Has extremely high dust holding capability as well as high efficiency. Includes antimicrobial fibers. MERV 10 media.
